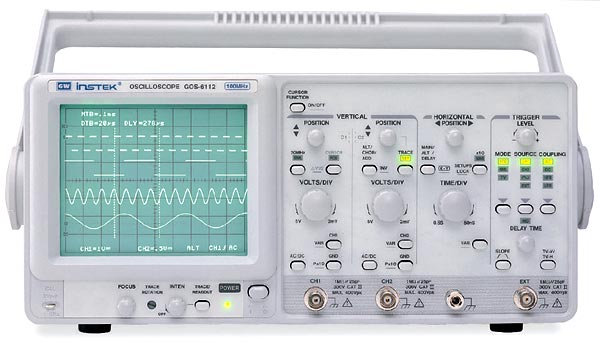

GWInstek GOS-6112 模拟示波器(100Mhz,2CH)

The screen display with 8x10 6 inch squares
Sensitivity: 2mV ~ 5V / DIV ± 3%,
Bandwidth: 100MHz
Input: AC, DC, GND, Max 400V
Mode: CH1, CH2, DUAL, ADD, CH2 INV
Power supply: AC 100V / 120V/220V / 230V ± 10%, 50 / 60Hz
Manufacturer: GwInstek - Taiwan



Details
CRT
Type 6-inch rectangular type with internal graticule;
0%, 10%, 90% and 100% markers.
8 x 10 div (1 div = 1 cm)
Accelerating Potential 16kV approx. (GOS-6103/GOS-6103C), 12 kV approx.(GOS-6112)
Illumination Continuously adjustable (GOS-6103/GOS-6103C)
Z-axis input Coupling : DC
Sensitivity: 5V or more
Maximum input voltage : 30V (DC + AC peak) at 1kHz or less
Bandwidth : DC ~ 5 MHz
VERTICAL SYSTEM
Sensitivity 2mV~5V/div, 11 step in 1-2-5 sequence
Sensitivity Accuracy ≦3% (5div at the center of display)
Vernier Vertical Sensitivity Continuously variable to 1/2.5 or less of panel-indicate value
Bandwidth(-3dB) DC~100MHz (2mV/div:DC~20MHz)
Rise Time 3.5ns (2mV/div:17.5ns)
Signal Delay Leading edge can be monitored
Max. Input Voltage 400V(DC+AC peak) at 1kHz or less
Input Coupling AC, DC, GND
Input Impedance 1MΩ±2% // approx. 25pF
Vertical Mode CH1,CH2,DUAL(CHOP/ALT), ADD, CH2 INV.
Bandwidth Limited 20MHz
Common-Mode Rejection Ratio 50:1 or better at 50kHz
Dynamic Range 8 div at 60MHz
5 div at 100MHz
HORIZONTAL SYSTEM
Horizontal Modes  MAIN(A), ALT, DELAY(B)
A(main) Sweep Time 50ns~0.5s/div, continuously variable (UNCAL)
B(delay) Sweep Time 50ns~50ms/div
Accuracy ±3% (±5% at x 10 MAG)
Sweep Magnification x 10 (maximum sweep time 5nS/div)
Hold Off Time Variable
Delay Time 1μs~5s
Delay Jitter Better than 1:20000
Alternate Separation Variable
TRIGGER
Trigger Modes AUTO, NORM,TV
Trigger Source CH1, CH2, LINE, EXT
Trigger Coupling AC, DC, HFR, LFR
Trigger Slope "+" or "-" polarity or TVsync polarity
Trigger Sensitivity
Mode Frequency INT EXT
AUTO 10Hz~20MHz
20MHz~100MHz
0.35div
1.5div
50mV
150mV
NORM DC~20MHz
20MHz~100MHz
0.35div
1.5div
50mV
150mV
TV sync singnal 1div 200mVpp
TV sync TV-V, TV-H
Max. External Input Voltage 400V (DC+AC peak) at 1kHz
External Input Impedance 1MΩ±5% // approx.25pF
X-Y OPERATION
Mode

X-axis: selectable CH1, CH2, EXT
Y-axis: selectable CH1, CH2, CH1 and CH2

Sensitivity Accuracy 2mV~5V/div±3% ; EXT : 0.1V/div±5%
X-axis Bandwidth DC~500kHz(-3dB)
Phase Error 3° or less from DC~50kHz
OUTPUT SIGNAL
CH1 Signal Output Voltage: approx. 25mV/div into 50Ω
Frequency response : DC ~ 10MHz
Calibrator Output 1kHz Square wave, 2Vpp±2%
CURSOR READOUT FUNCTION
Cursor Measurement Function ΔV, ΔV%, ΔVdB, ΔT, 1/ ΔT, ΔT%, Δθ
Cursor Resolution 1/100 DIV
Effective Cursor Range Vertical: ±3div ; Horizontal: ±4 div
Panel Setting Display Vertical: V/div(CH1,CH2),UNCAL,ALT/CHOP/ADD,INV, probe factor,AC/DC/GND
Horizontal: s/div(MTB, DTB), UNCAL, x 10MAG, delay time , HO
Trigger: source, coupling, slope, level, TV-V, TV-H
Others: X-Y lock, save/recall MEM 0-9 (GOS-6103/GOS-6103C)
AUTO MEASUREMENT FUNCTION (GOS-6103C)
Parameter Function FREQ, PERIOD, ±WIDTH, ±DUTY (+ or - polarity selected by trigger slope)
Display Digits Max. 6-digits, decimal
Frequency Range 50Hz ~ 100MHz
Accuracy 1kHz ~ 100MHz : 0.01% ; 50Hz ~ 1kHz : 0.05%
Measuring Sensitivity > 2 div (Measuring source selected from CH1 and CH2 as synchronous signal sources)
SPECIAL FUNCTION
TIME/DIV Auto Range Provided (GOS-6103/GOS-6103C)
Panel Setting Save & Recall 10 sets (GOS-6103/GOS-6103C)
Panel Setups Lock Provided
POWER SOURCE
  AC 100V/ 120V/ 230V±10% , 50/60Hz
DIMENSIONS & WEIGHT
  310(W) x 150(H) x 455(D) mm; Approx. 9kg
