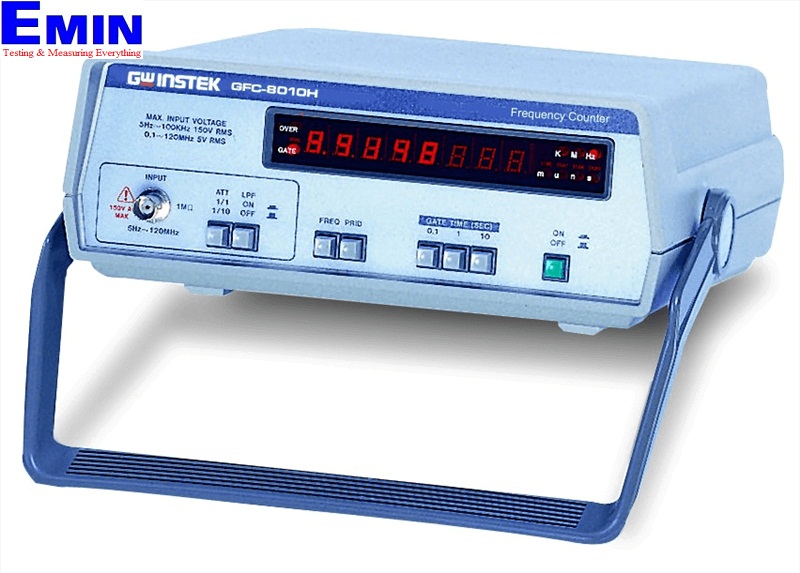

GW INSTEK GFC-8010H GWinstek GFC-8010H 数字频率计(10Hz~120Mhz)

 DISPLAY

  8 digits with Hz, kHz, MHz, GHz, S, mS, μS, nS and overflow
GATE TIME
  0.1S, 1S, 10S selectable
ACCURACY
  +(1 digit + time base accuracy)
Sensitivity
10Hz ~ 10MHz: < 15mVrms
10MHz ~ 40MHz: < 20mVrms
40MHz ~ 80MHz: < 35mVrms
80MHz ~ 120MHz: < 50mVrms
Impedance 1MΩ//35pF
Coupling AC coupling
Max Input 150Vrms
TIME BASE
Oscillation Frequency 10MHz
Aging Rate +1 ppm per month
Temperature Stability 25°C + 5°C:+5 ppm
RESOLUTION
Frequency 1μHz for 10Hz input
0.1Hz for 100MHz input
Period 1ns for 10Hz input
0.1 x 10-15 for 100MHz input
POWER SOURCE
  AC 100V/120V/220V/230V ±10%, 50/60Hz
DIMENSIONS & WEIGHT
  230(W) × 95(H) × 280(D) mm
Approx. 1.7 kg
