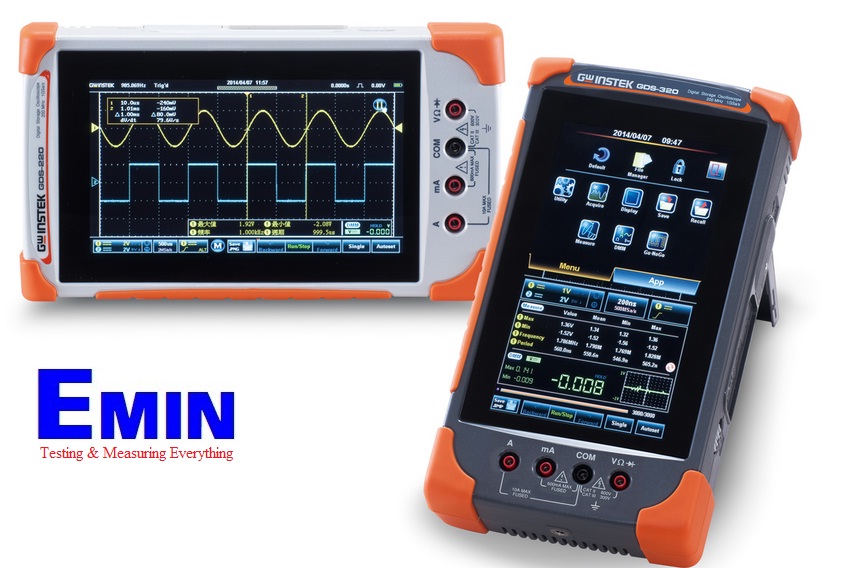

GW INSTEK GDS-320 200MHz，2通道，数字示波器
制造商: GW INSTEK Model: GDS-320 来源: Taiwan - 联系
|
|
Model |
GDS-320 |
|
|
VERTICAL |
|||
|
|
Channels |
2 (BNC-Shield) |
|
|
|
Input Impedance |
1MΩ±2%, 16.5pf approx. |
|
|
|
Maximum Input |
CAT II 300VRMS |
|
|
|
Input Coupling |
AC, DC, GND |
|
|
|
Bandwidth |
DC~200MHz (-3dB) <1.75ns |
|
|
|
Rise time |
||
|
|
Sensitivity |
2mV/div~10V/div (1-2-5 increments) |
|
|
|
Accuracy |
±(3% x Readout + 0.1 div + 1mV) |
|
|
|
Bandwidth Limit |
20MHz(-3dB) |
|
|
|
Polarity |
Normal, Invert |
|
|
|
Offset Position Range |
2mV/div~50mV/div : ±0.4V |
|
|
SIGNAL ACQUISITION |
|||
|
|
Realtime sample rate |
1GSa/s |
|
|
|
Memory depth |
5M points per ch |
|
|
|
Acquisition mode |
Average: 2~256 waveforms |
|
|
|
Replay wfms. |
30,000 wfms. |
|
|
TRIGGER |
|||
|
|
Source |
Ch1 or Ch2 |
|
|
|
Trigger mode |
Auto, Normal, Single, Force |
|
|
|
Trigger type |
Edge, Pulse Width, Video, Alternate |
|
|
|
Trigger Holdoff |
10ns ~ 10s |
|
|
|
Coupling |
AC, DC, LFR, HFR, NR |
|
|
|
Sensitivity |
DC~25MHz: approx. 0.5div or 5mV |
|
|
HORIZONTAL |
|||
|
|
Range |
5ns~100s/Div (1-2-5 increments) |
|
|
|
Roll |
100ms/div ~ 100s/div |
|
|
|
Pre-trigger |
||
|
|
Model |
GDS-320 |
|
|
VERTICAL |
|||
|
|
Channels |
2 (BNC-Shield) |
|
|
|
Input Impedance |
1MΩ±2%, 16.5pf approx. |
|
|
|
Maximum Input |
CAT II 300VRMS |
|
|
|
Input Coupling |
AC, DC, GND |
|
|
|
Bandwidth |
DC~200MHz (-3dB) <1.75ns |
|
|
|
Rise time |
||
|
|
Sensitivity |
2mV/div~10V/div (1-2-5 increments) |
|
|
|
Accuracy |
±(3% x Readout + 0.1 div + 1mV) |
|
|
|
Bandwidth Limit |
20MHz(-3dB) |
|
|
|
Polarity |
Normal, Invert |
|
|
|
Offset Position Range |
2mV/div~50mV/div : ±0.4V |
|
|
SIGNAL ACQUISITION |
|||
|
|
Realtime sample rate |
1GSa/s |
|
|
|
Memory depth |
5M points per ch |
|
|
|
Acquisition mode |
Average: 2~256 waveforms |
|
|
|
Replay wfms. |
30,000 wfms. |
|
|
TRIGGER |
|||
|
|
Source |
Ch1 or Ch2 |
|
|
|
Trigger mode |
Auto, Normal, Single, Force |
|
|
|
Trigger type |
Edge, Pulse Width, Video, Alternate |
|
|
|
Trigger Holdoff |
10ns ~ 10s |
|
|
|
Coupling |
AC, DC, LFR, HFR, NR |
|
|
|
Sensitivity |
DC~25MHz: approx. 0.5div or 5mV |
|
|
HORIZONTAL |
|||
|
|
Range |
5ns~100s/Div (1-2-5 increments) |
|
|
|
Roll |
100ms/div ~ 100s/div |
|
|
|
Pre-trigger |
10 div max. |
|
|
|
Post_trigger |
1,000 div max(depend on time base) |
|
