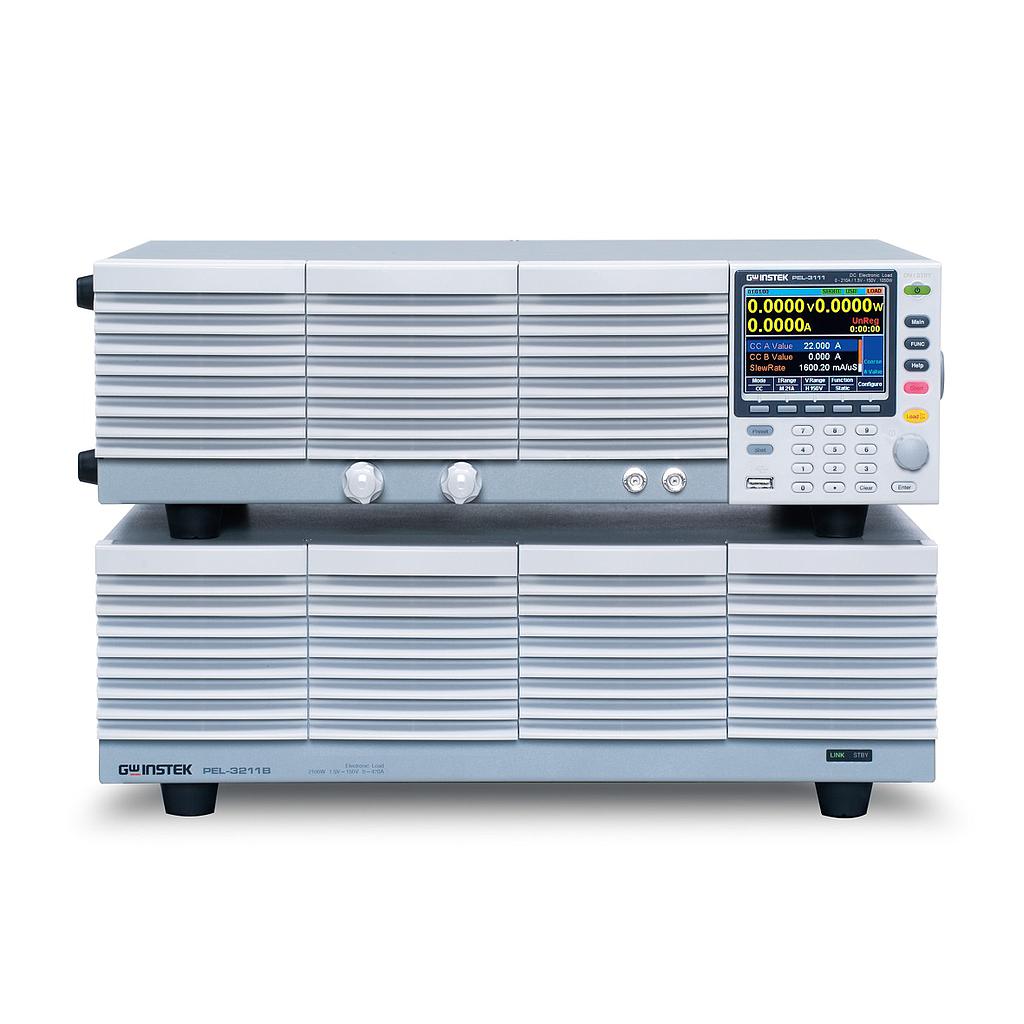

GW INSTEK PEL-3322H DC电子负载 (3150W)

Voltage: 0V~800V

Current 0~157.5A

Power: 3150W

Input Resistance: 3.24MΩ

CC Mode

Operating Range

        H 0~157.5A

        M 0~15.75A

        L 0~1.575A

Accuracy of Setting

        H, M ±(1.2 % of set + 1.1 % of f.s*1) + Vin*2/3.24 MΩ *

        L ±(1.2 % of set + 1.1 % of f.s) + Vin*2/3.24 MΩ

Resolution

        H 6mA

        M 0.6mA

        L 0.06mA

CR mode

Operating Range

        H 31.5S~540uS(31.746mΩ~1.85185kΩ)

        M 3.15S~540uS(317.46mΩ~18.5185kΩ)

        L 315mS~540uS(3.1746Ω~185.185kΩ)

Accuracy of Setting

        H, M ±(0.5 % of set*6 + 0.5 % of f.s.*1) + Vin*2/3.24MΩ

        L ±(0.5 % of set*6 + 0.5 % of f.s.) + Vin*2/3.24MΩ

Resolution

        H 540uS

        M 54uS

        L 5.4uS

CV mode

Operating Range

        H 5V~800V

        L 5V~80V

Accuracy of Setting

        H, L ±(0.2 % of set + 0.2 % of f.s)

Resolution

        H 20mV

        L 2mV

CP mode

Operating Range

        H 315W~3150W

        M 31.5W~315W

        L 3.15W~31.5W

Setting Range

        H 0W~3150W

        M 0W~315W

        L 0W~31.5W

Accuracy of Setting

        H, M ±(0.6 % of set + 1.4 % of f.s*3) + Vin*Vin*3/3.24MΩ

        L ±(0.6 % of set + 1.4 % of f.s) + Vin*Vin*3/3.24MΩ

Resolution

        H 300mW

        M 30mW

        L 3mW

Dimensions (mm) & Weight: 598(W) x 611(H) x 706(D), 73kg
