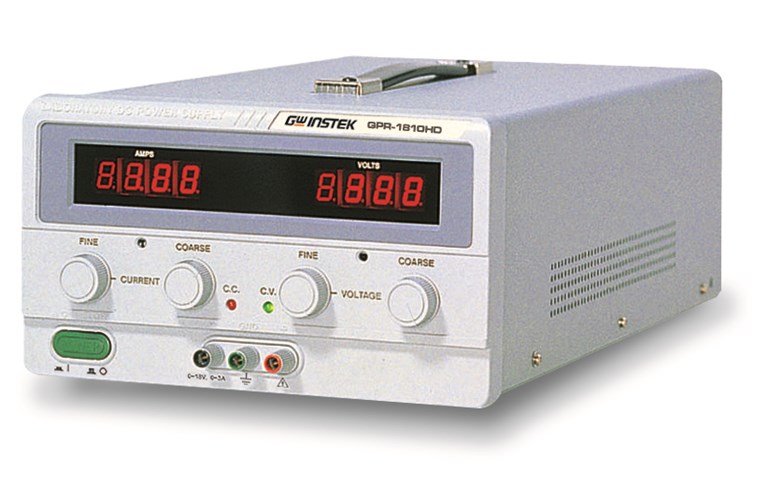

GW instek GPR-1810HD 线性可调直流稳压电源(18V,10A,180W)

-
Accessories: Test lead GTL-104A x 1;  User manual x 1
DC OUTPUT

Output Volts (V)
Output Amps (A)
GPR-1810HD
0 ~ 18
0 ~ 10
CONSTANT VOLTAGE OPERATION
Regulation Line regulation < 0.01% + 3mV
Load regulation <0.01% + 5mV (<10A)
Load regulation < 0.02% + 5mV (>10A)
Ripple & Noise < 1mVrms (5Hz ~ 1MHz)
Recovery Time < 100μS ( 50% load change, minimum load 0.5A )
Output range 0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Regulation Line regulation < 0.2% + 3mA
Load regulation <0.2% + 3mA
Ripple Current < 3mArms
Output Range 0 to rating current continuously adjustable
METER
Type 3 1/2 Digits 0.5" LED Display
Accuracy ±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal 20MΩ or above (DC 500V)
Chassis and AC Cord 30MΩ or above (DC 500V)
POWER SOURCE
  AC 100V/120V/220V/240V±10%, 50/60Hz
ACCESSORIES
  User manual x 1
Power cord x 1
Test Lead GTL-104 x 1
DIMENSIONS & WEIGHT
  255(W) x 145(H) x 335(D)mm
Approx. 11.5kg
