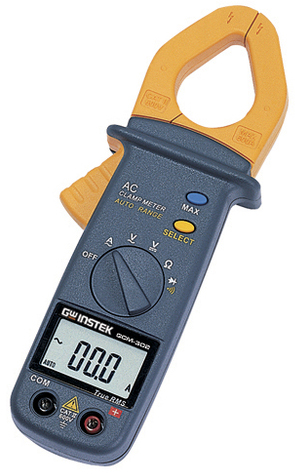

GWinstek GCM-303迷你钳形表

ACA
Range
Resolution
Accuracy
Frequency
200A, 600A
0.1A, 1A
±(1.9%reading + 5digits)~±(1.9%reading + 10digits)
40Hz~500Hz
ACV
Range
Resolution
Accuracy
Input Impedance
Frequency
2V, 20V, 200V, 600V
0.001V, 0.01V, 0.1V, 1V
±(1.5%reading + 5digits)~±(1.5%reading + 10digits)
Approx.11MΩ~Approx.10MΩ
40Hz~500Hz
DCV
Range
Resolution
Accuracy
Impedance
200mV, 2V, 20V, 200V, 600V
0.1mV, 0.001V, 0.01V, 0.1V, 1V
±(0.7%reading + 3digits)~±(1.3%reading + 3digits)
Approx.11MΩ~Approx.10MΩ
Ohm
Range
Resolution
Accuracy
Open-Loop Voltage
200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ
±(1.5%reading + 5digits)~±(10%reading + 5digits)
Approx.0.4V
DIODE
Range
Resolution
Accuracy
Open-Loop Voltage
2V
0.001V
±(10%reading + 5digits)
Approx.1.5V
BUZZER
Range
Resolution
Accuracy
Open-Loop Voltage
200Ω
0.1Ω
The buzzer turns on for resistances lower than 60Ω±20Ω
0.4V
OPERATION TEMP./HUMIDITY
  0℃~50℃(32℉~122℉)/Below 80% R.H.(No condensation)
STORAGE TEMP./HUMIDITY
  -10℃~60℃(14℉~140℉)/Below 70% R.H.(No condensation)
DIMENSIONS & WEIGHT
  189(L) × 71(W) × 37(H) mm
Approx. 200g(Including Batteries)
