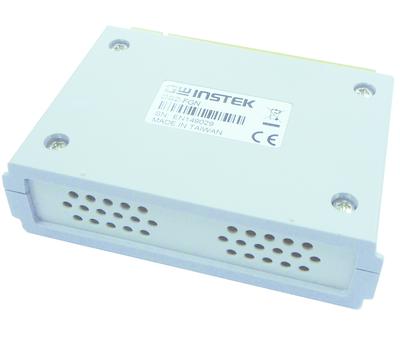

GW INSTEK DS2-FGN 함수 발생기 모듈 (5MHz, used for GDS-2000A)

Waveforms: Sine, Square, Triangle

Frequency range: 0.1Hz ~ 5MHz for sine,

                 0.1Hz ~ 1MHz for square

                 0.1Hz ~ 100KHz for triangle

Frequency Stability: +/- 50ppm

Frequency Accuracy: +/- 50ppm (+/- 0.25Hz)

Aging: +/- 5ppm/Year

Amplitude Range: 60mVpp ~ 6Vpp (into 1M ohm)

                 30mVpp ~ 3Vpp (into 50 ohm)

Amplitude Accuracy: +/- 10%

DC Offset: +/-2V (into 1M ohm)

           +/-1V (into 50 ohm)

Duty Control Range: 20%~80% (Square wave only)
