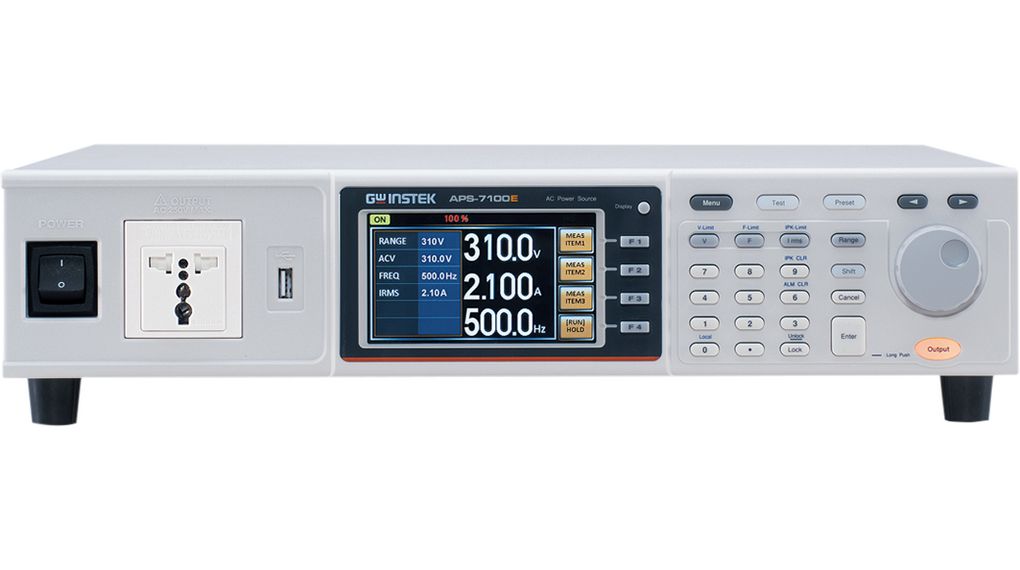

GW INSTEK APS-7100E AC 전원 (1kVA, 310Vrms)

  • 생산업체:GW INSTEK
    Model: APS-7100E
    출처: Taiwan
    • 견적요구 Request a Quotation
  • 연락처
  • 재고수량: 1
    • 카트담기
    • 바로 구매하기
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Maximum Output Capacity:

Power Rating: 1kVA

Range Output Voltage Setting: 0~155Vrms, 0~310Vrms, Auto

Range Output Maximum Current: 8.4A/4.2A

Range Output Maximum Peak Current: 33.6A/16.8A

Output Frequency Setting:

Range: 45.0~500Hz

Resolution:  0.01Hz(45.0~99.99Hz)

  0.1Hz(100.0~500.0Hz)

Setting Accuracy: ±(0.02% of setting)

Waveform:

Total harmonic distortion: ≦0.5% at 45~500Hz (Resistive load)

Voltage Regulation:

Line Regulation: 0.1% of full scale

Load Regulation: 0.5% of full scale

Measurement:

Frequency:  Range: 45~ 500Hz

Resolution:  0.01Hz (45.0~99.99Hz)

  0.1Hz (100.0~500.0Hz)

Voltage (r.m.s):  Range:  0.2~38.75 Vrms

  38.76~77.5 Vrms

  77.51~155.0 Vrms

  155.1~310.0 Vrms

Resolution: 0.01V at 0.00~99.99 Vrms

  0.1V at 100.0~310.0 Vrms

Accuracy: ±(0.5% of reading+ 2counts)



  Current (r.m.s):  Range: 2.00~70.00mA

  60.0~350.0mA

  0.300~3.500A

  3.00~17.50A

Resolution: 0.01mA

  0.1mA

  0.001A

  0.01A

Accuracy:  ±(0.6% of reading+5 counts), 2.00~350.0mA

  ±(0.5% of reading+5 counts), 0.350~3.5A

  ±(0.5% of reading+3 counts), 3.500~17.5A

Power (W):  Resolution: 0.01W

  0.1W

  1W

Accuracy:  ±(0.6% of reading+5 counts), 0.2~99.99W

  ±(0.6% of reading+5 counts), 100.0~999.9W

  ±(0.6% of reading+2 counts), 1000~9999W

Power Factor:  Resolution: 0.001

Accuracy: ±(2% reading+ 2 counts)

Memory: 10 (0~9 numeric keys)

Others:

AC Input: 115/230 Vac±15%

Phase: Single Phase, Two wire (1P2W)

Protection: OCP, OPP, OHP and Alarm

Dimension (W*H*D) & Weight : 430x88x560,38Kg
