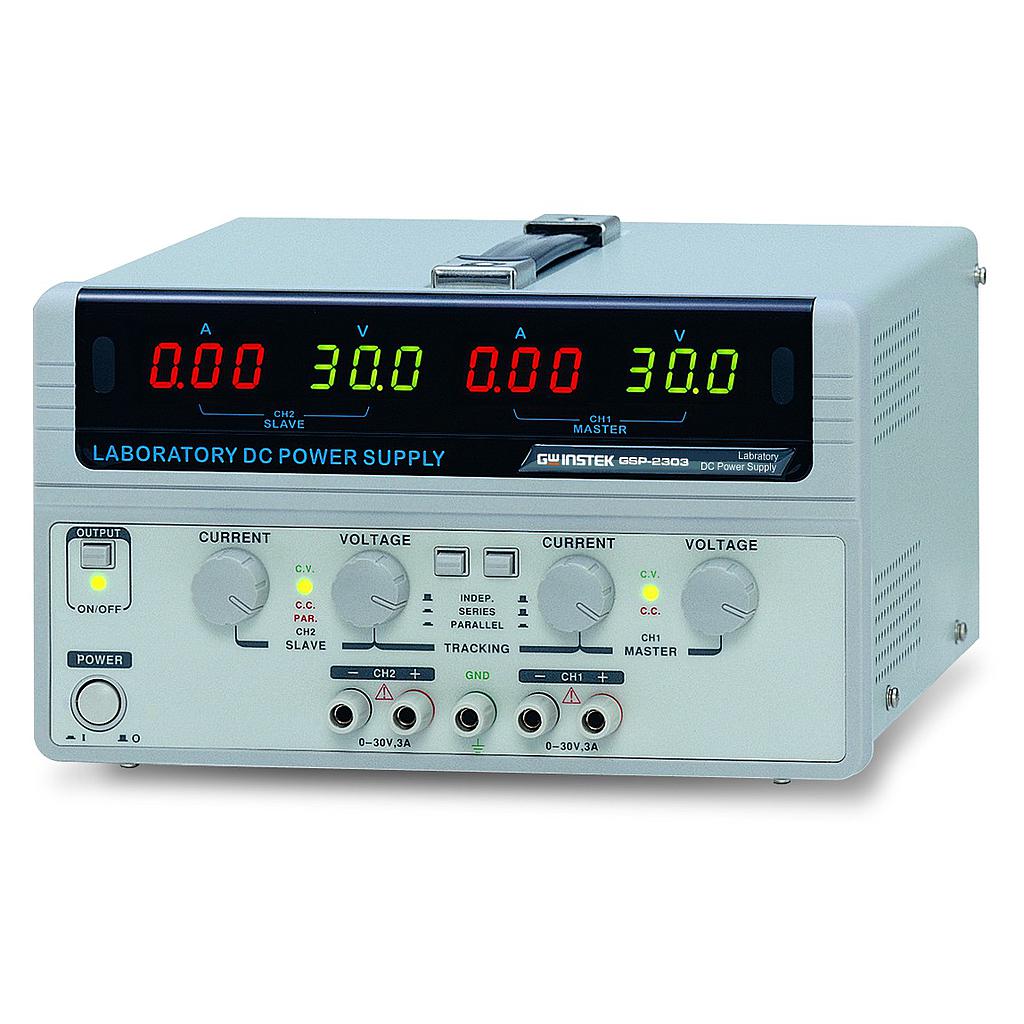

GW instek GPS-2303 Two Output Linear D.C. Power Supply (30V, 3A, 2CH)

-
Accessories: Test lead GTL-104A x 2 ; European test lead GTL-204A x 2, GTL-201A x1, User manual x 1, Power cord x 1



GPS-2303
DC OUTPUT

CH1
CH2
Voltage
0~30V
Current
0~3A
Tracking Series Voltage
0~60V
Tracking Parallel Current
0~6A

CONSTANT VOLTAGE OPERATION (CH1, CH2)

Line Regulation ≦0.01% + 3mV
Load Regulation ≦0.01% + 3mV (rating current≦3A)
≦0.02% + 5mV (rating current >3A)
Ripple & Noise ≦1mVrms 5Hz ~ 1MHz
Recovery Time ≦100μS ( 50% Load change, Minimum load 0.5A )

CONSTANT CURRENT OPERATION (CH1, CH2)

Line Regulation ≦0.2% + 3mA
Load Regulation ≦0.2% + 3mA
Ripple Current ≦3mArms

TRACKING OPERATION (CH1, CH2)

Tracking Error ≦0.5% + 10mV of CH1
Series Regulation ≦0.01% + 5mV
Load Regulation ≦300mV
Ripple & Noise ≦2mVrms, 5Hz ~ 1MHz

METER

Digital



Accuracy

3 Digits 0.5" LED Display

GPS-2303 Accuracy ± (0.5% of rdg + 2 digits)

INSULATION

Chassis and Terminal ≧DC 500V / 20MΩ
Chassis and AC Cord ≧DC 500V / 30MΩ
POWER SOURCE
  AC 100V/120V/220V ±10%, 230V(+10% ~ -6%), 50/60Hz
DIMENSIONS & WEIGHT
  255(W) x 145(H) x 265(D)mm, Approx. 7kg
