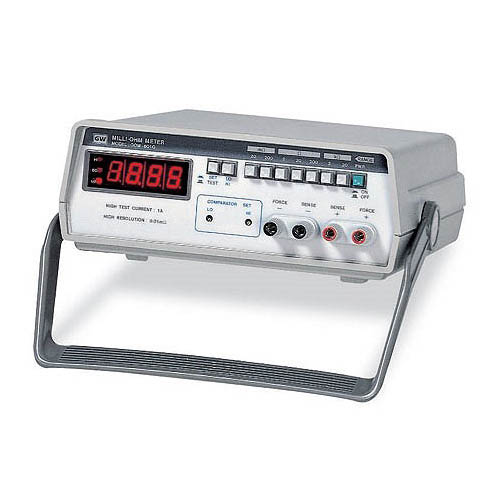

Gwinstek GOM-801H High Precision DC Milli-Ohm Meter

TEST RANGE
  20, 200mΩ, 2, 20, 200Ω, 2k, 20kΩ 7 Ranges
TEST CURRENT (Test Voltage 0.2V)
  20mΩ/200mΩ: 1A
2Ω: 0.1A
200Ω: 1mA
2kΩ: 100uA
20kΩ: 10uA
ACCURACY
Measurement 20mΩ: ± (0.2% rdg + 6 digits)
200mΩ ~ 20kΩ: ± (0.2% rdg + 4 digits)
Setting ± (0.2% + 6 digits)
RESOLUTION
  0.01Ω, 0.1Ω, 1Ω, 10Ω, 100mΩ, 1Ω, 10Ω
COMPARATOR
  HI, LO settable
DISPLAY
  3 1/2 digits 0.5" LED display
HI, GO, LO indicator
POWER SOURCE
  AC 100V/120V/220V/230V±10% , 50/60Hz
DIMENSIONS & WEIGHT
  230(W) x 95(H) x 280(D)mm
Approx. 2 kg
Detail

Download Datasheet

TEST RANGE
  20, 200mΩ, 2, 20, 200Ω, 2k, 20kΩ 7 Ranges
TEST CURRENT (Test Voltage 0.2V)
  20mΩ/200mΩ: 1A
2Ω: 0.1A
200Ω: 1mA
2kΩ: 100uA
20kΩ: 10uA
ACCURACY
Measurement 20mΩ: ± (0.2% rdg + 6 digits)
200mΩ ~ 20kΩ: ± (0.2% rdg + 4 digits)
Setting ± (0.2% + 6 digits)
RESOLUTION
  0.01Ω, 0.1Ω, 1Ω, 10Ω, 100mΩ, 1Ω, 10Ω
COMPARATOR
  HI, LO settable
DISPLAY
  3 1/2 digits 0.5" LED display
HI, GO, LO indicator
POWER SOURCE
  AC 100V/120V/220V/230V±10% , 50/60Hz
DIMENSIONS & WEIGHT
  230(W) x 95(H) x 280(D)mm
Approx. 2 kg
