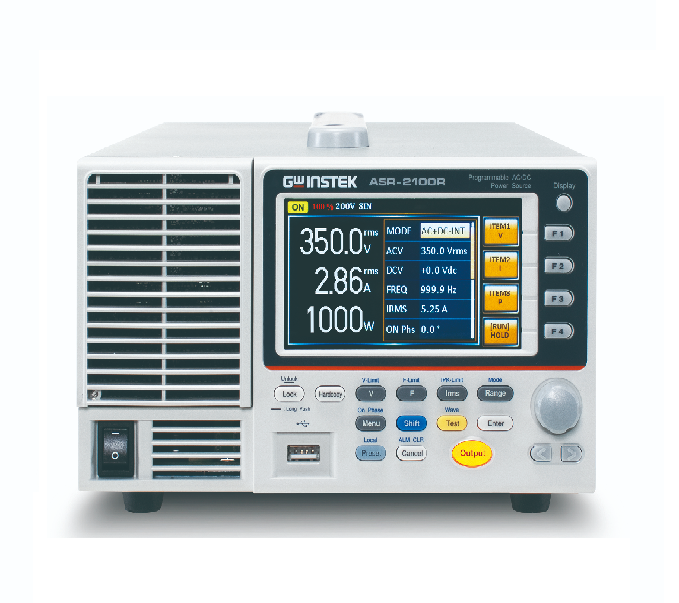

GW INSTEK ASR-2100R Programmable AC/DC Power Source (1000VA, Rack type)
Manufacturer: GW INSTEK Model: ASR-2100R Origin: Taiwan Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V
Output Frequency up to 999.9 Hz
DC Output (100% of Rated Power)
Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
Voltage and Current Harmonic Analysis(THDv, THDi)
Remote Sensing Capability
OVP, OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm.
Support Arbitrary Waveform Function
Output Capacity: 1000VA
Customized Phase Angle for Output On/Off
Sequence and Simulation Function(up to 10 sets)
Interface: USB, LAN(std.); RS-232+GPIB(opt.)
Built-in External Control I/O and External Signal Input
Built-in Output Relay Control
Memory Function (up to 10 sets)
Built-in Web Server
